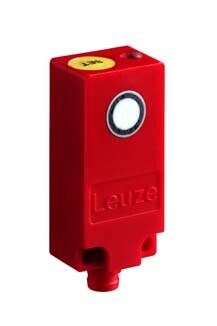

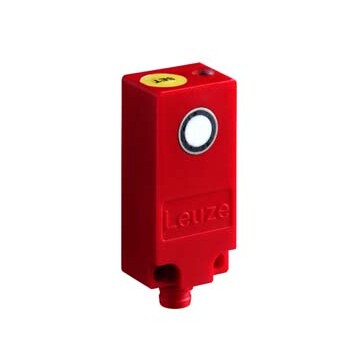

HRTU 420/2NC.2-S-S8 - 50113983
Czujnik ultradźwiękowy firmy LEUZE, zakres: 0,01 ... 0,2 m; zasilanie: 12 ... 30 V, DC; wyjście1: NPN/NC; częstotliwość: 50 Hz; konektor M8-4 pin; obudowa: kostkowa; wymiary: 20 x 42 x 15 mm; obudowa tworzywo
Zapytaj o produkt:
Parametry produktu
Czas dostawy gdy brak na magazynie
3 tygodnie
Gwarancja
24
Producent
LEUZE ELECTRONIC
Opisy produktu
-
Technical features
-
Basic data
- Series420
- Operating principleDiffuse reflection principle with background suppression
-
Optical data
- Operating rangeGuaranteed operating range
- Operating range0.01 ... 0.2 m
- Shape of sound lobeNarrow
- Direction of beamFront
-
Electrical data
- Protective circuitPolarity reversal protection, Overvoltage protection, Short circuit protected
-
Performance data
- Supply voltage UB12 ... 30 V, DC
- Residual rippleFrom UB
-
Inputs
- Number of teach inputs1 Piece(s)
-
Outputs
- Number of digital switching outputs1 Piece(s)
-
Switching output 1
- Switching elementTransistor, NPN
- Switching principleNC (normally closed)
-
Timing
- Switching frequency50 Hz
- Ultrasonic frequency380 kHz
- Response time10 ms
-
Connection
-
Connection 1
- Type of connectionConnector
- Thread sizeM8
- MaterialPlastic
- No. of pins4 -pin
- EncodingA-coded
-
-
Mechanical data
- DesignCubic
- Dimension (W x H x L)20 mm x 42 mm x 15 mm
- Housing materialPlastic, PE
- Net weight10 g
-
Operation and display
- Type of displayLED
- Number of LEDs1 Piece(s)
- Operational controlsTeach button
-
Environmental data
- Ambient temperature, operation-10 ... 60 °C
- Ambient temperature, storage-40 ... 85 °C
-
Certifications
- Degree of protectionIP 67
- Protection classIII
- Certificationsc UL US
- Standards appliedIEC/EN 60947-5-2
-
Classification
- Customs tariff number85365019
- eCl@ss 8.027272803
- eCl@ss 9.027272803
- ETIM 5.0EC001849
- ETIM 6.0EC001849
-
